The Set :
You can select :
– A 100x50mm pair of 1xMMO in plate + 1Cathode plate

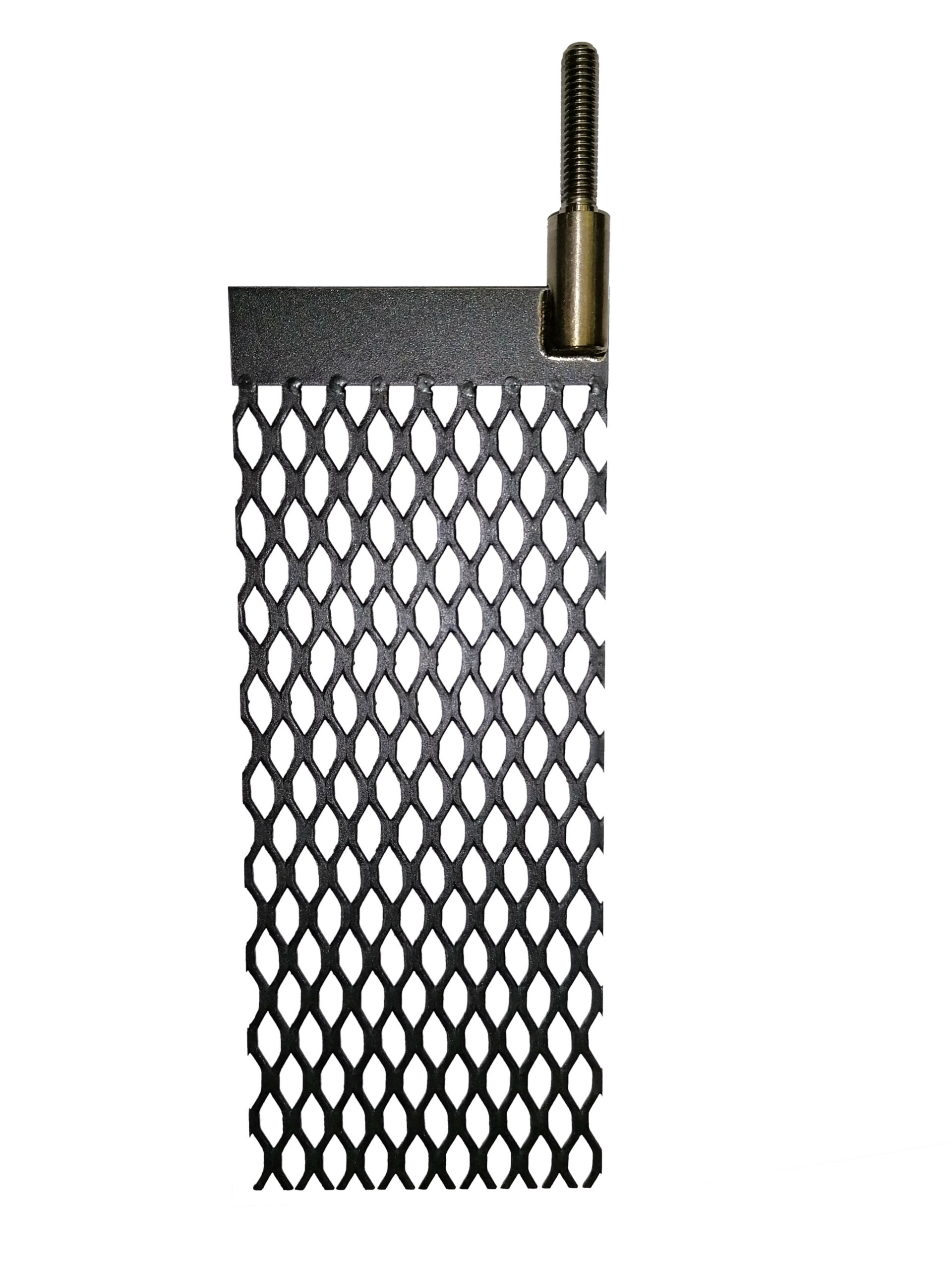

– An simple mesh Anode of 150x60mm as draw+pictures
– A 200x60mm pair of 1xMMO in mesh + 1Cathode plate

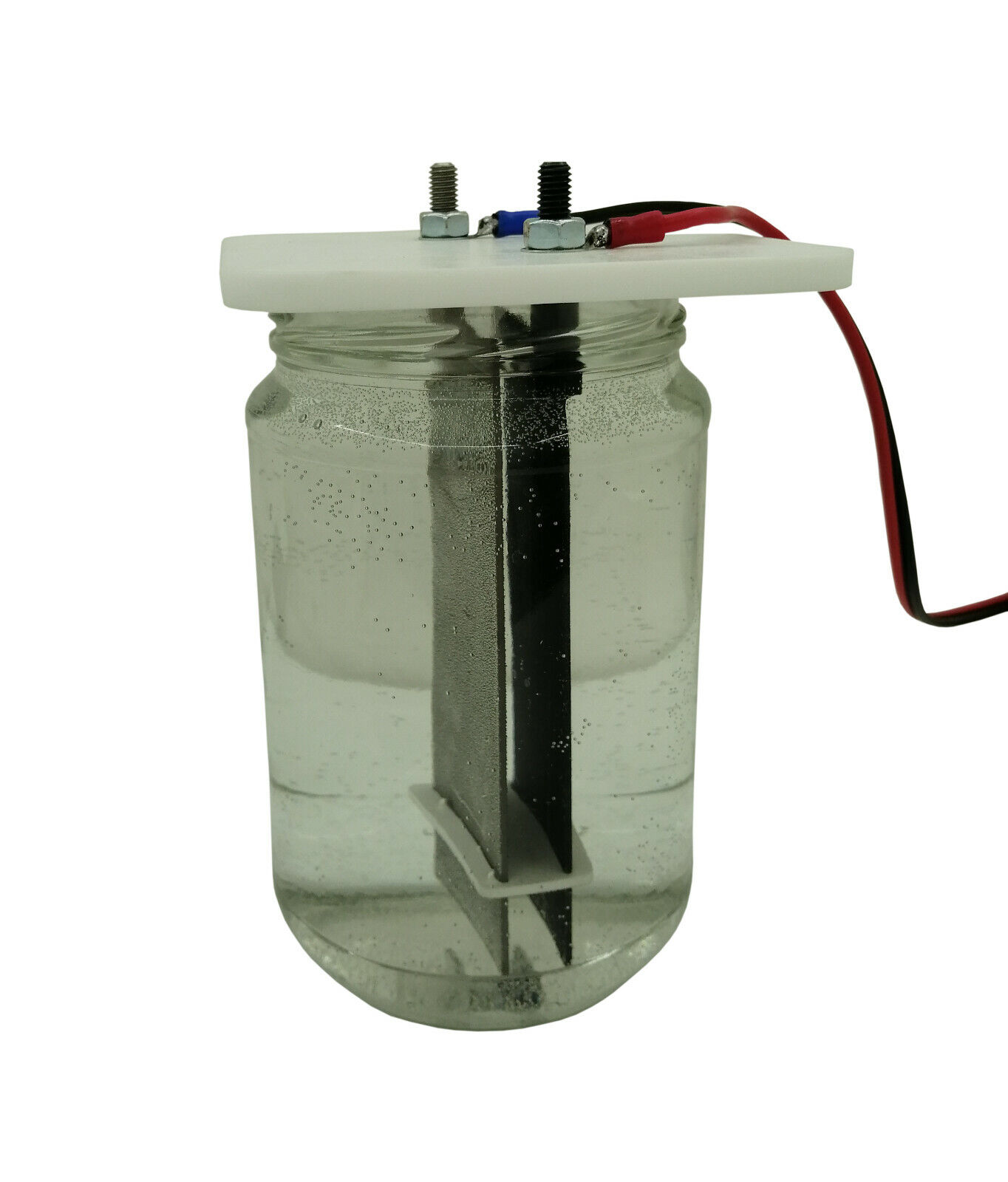

– A complete lid-set for laboratory electrolysis or swiming pool. (everything needed for use except the PSU and the jar)
Specification :
– Anode : MMO made of Ru-Ir coating on Titanium substrate provides excellent resistance to chemicals, and oxidation.
– Electrodes size (as the pictures):

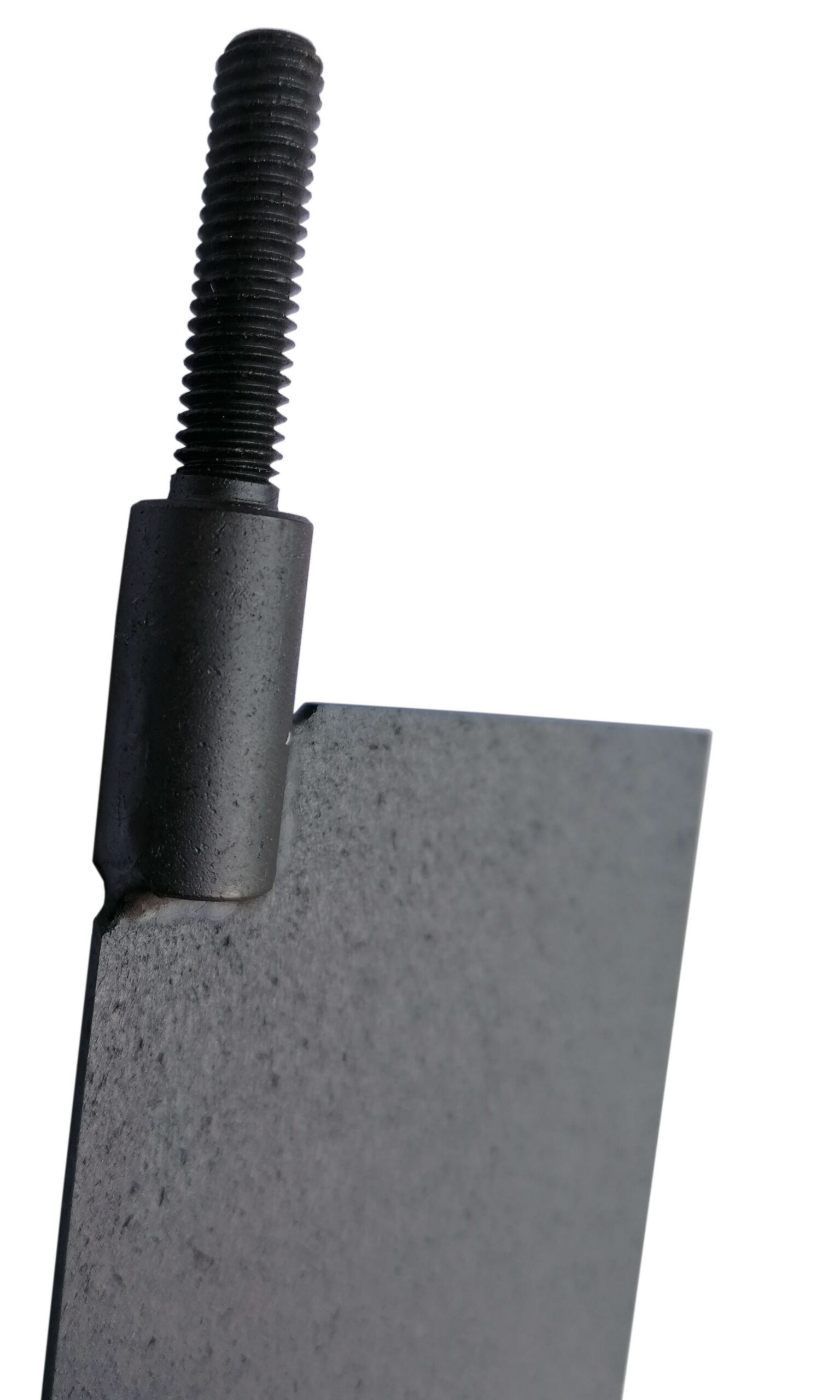

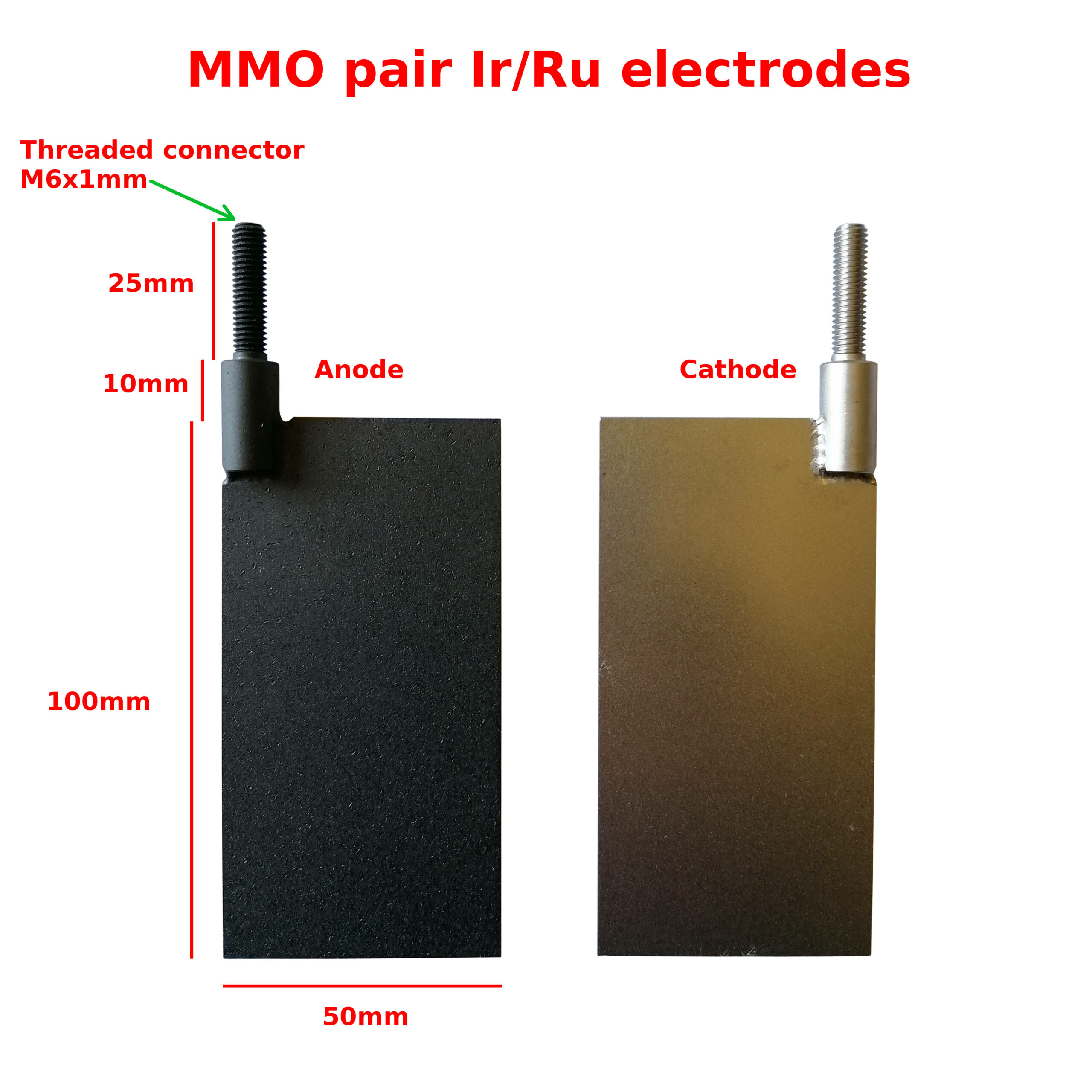

– 100x50x1mm of plate working surface + thread connectors,

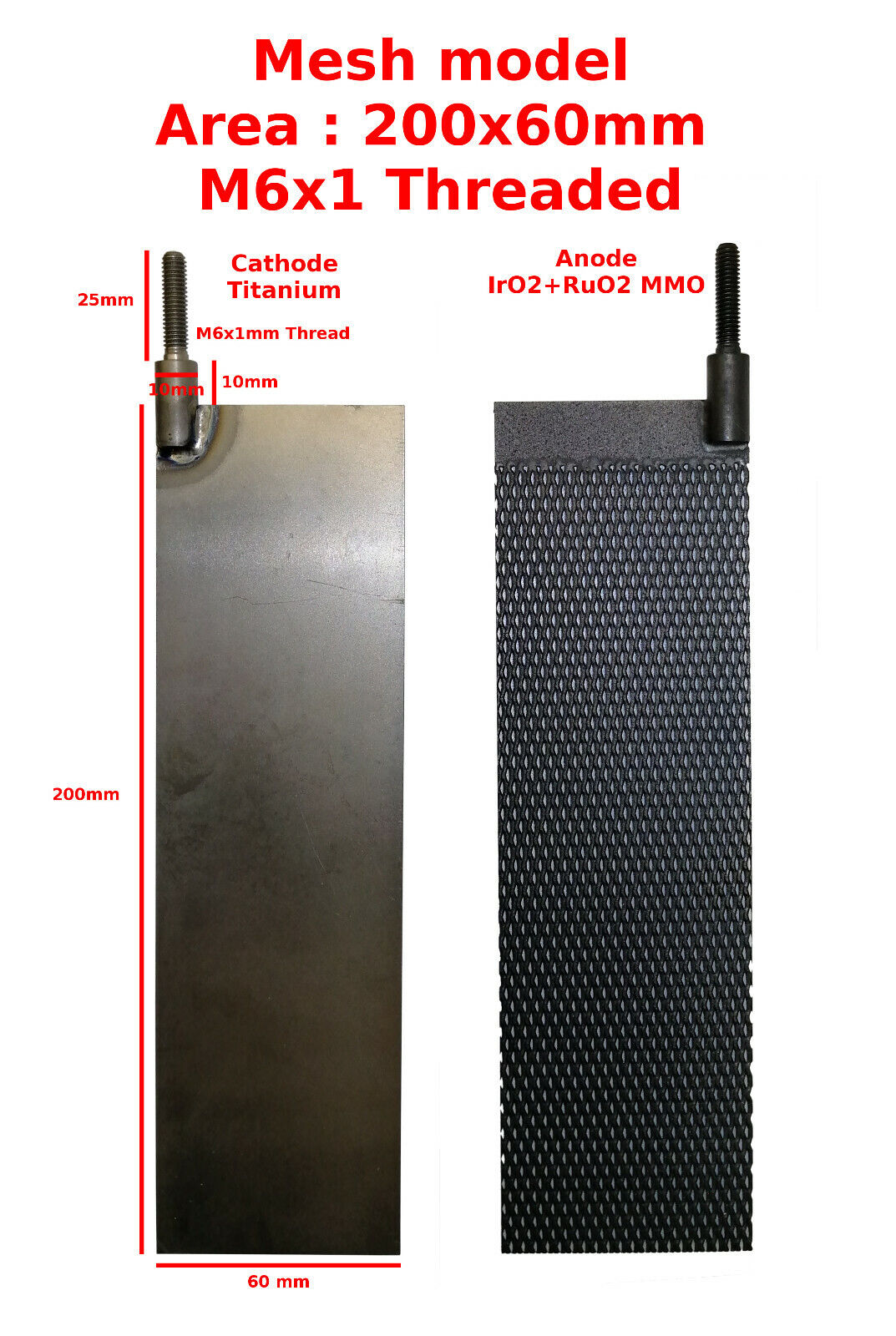

– 200x60x1,2mm of working surface + thread connectors
– Cathode : pure titanium plate, same size, Grade 1.
– The lifetime is very high, but depends on the use conditions (15 000 hours in swiming pool)
– Max current is 200mA/Cm2 for chlorate, less for hypochlorite.
– The coating is 12g/m² 50/50 Ir/Ru for the 200x60mm model and 8g/m² 30/70 Ir/Ru for the 100x50mm model (this point impact the prices).
– Max working temperature: near 70~80°C (higher temperature = slightly shorter lifetime but better yield for chlorate. Hypochlorite must stay under 40°C)
– This anode allow to electrolyze from chloride to chlorate in one step.
– The lid is 120x120x2mm in white PVC (more resistant to chlorine gas than PMMA old version).
– Durable and reliable laboratory equipment.
– This coating is reliable and is enable to reach 75 % of yield at 65°C during thousands of hours without visible degradation. (with 3 or 4g of persulfate/liter).
Tutorial video : https://www.youtube.com/watch?v=0aBQqFC_hzU
Warning:
– Put the « + » wire on the Anode (the dark one) and the « – » on the 1 or 2 Cathodes.
– Ru-Ir coating is quite sensitive : never chock or strike them.
– Avoid fluorine and all fluorine salt (persulfate works very well).
– Respect the max current to avoid fast degradation.
– Don’t reverse polarity, it will rapidly destroyed the electrodes.
– Gas are dangerous and flammable, the running cell MUST work in appropriate place.
– Read the manual.
– In some countries, for non-laboratories, some chlorate and their concentrations are restricted.
Package included:
– The selected pair of MMO (200×60 in mesh or 100×50 in plate) + cathode + 2 PTFE washers
or
– The simple Anode in mesh 150x60mm in M6x1mm connector
or

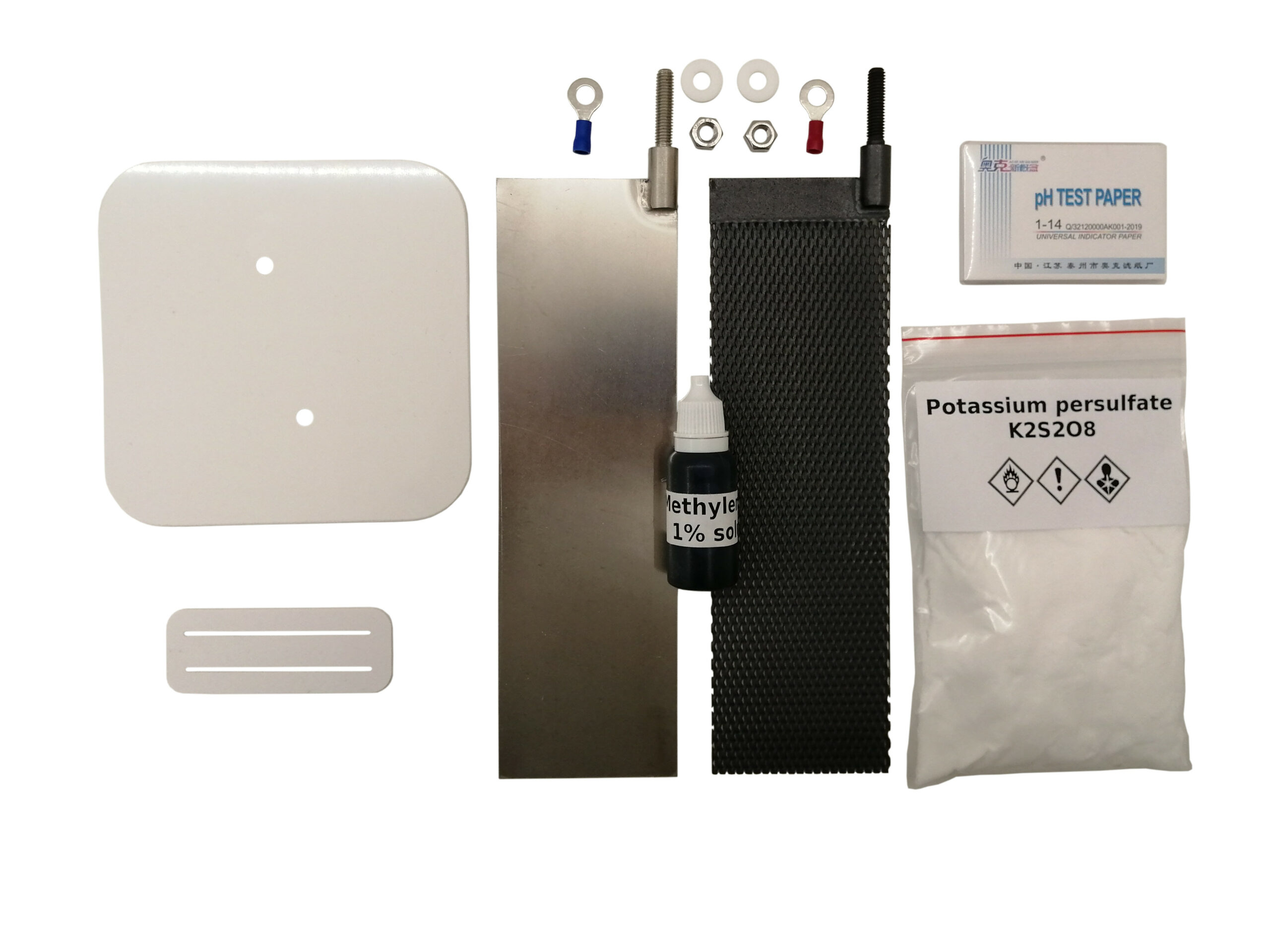

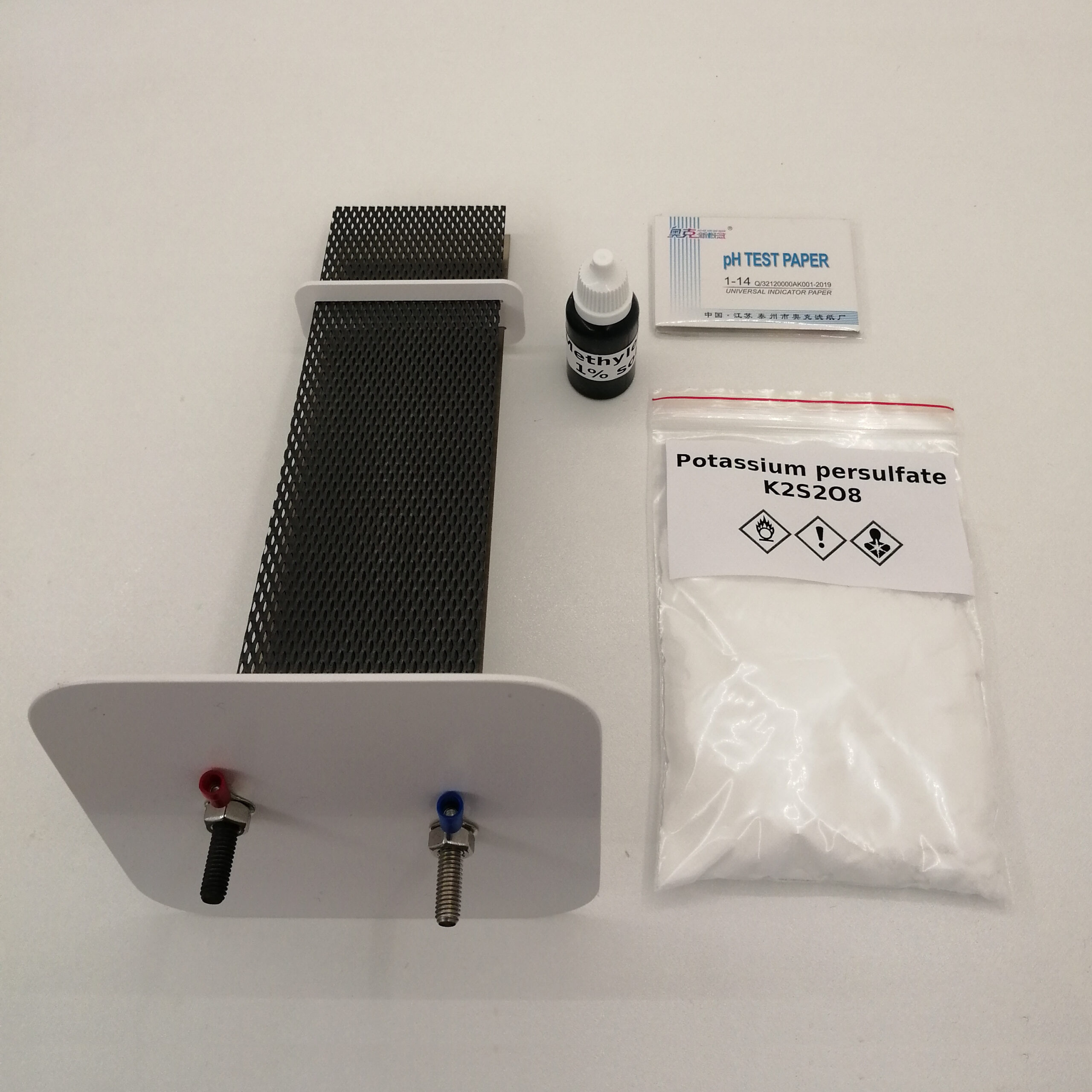

– A lid-set, including : 1 200x60mm Anode + 1 Cathode + PVC Lid of 120x120x2mm + Spacer + 100grams K-Persulfate + pH paper test book + 15mL Methylene blue dropper + 2 PTFE washers + 2 Hex nuts M6x1 + 2 electric Terminal Connectors.
Manual of laboratory electrolysis
(ENGLISH V.2024): https://feanor-lab.com/Practical_guide_to_electrolysis_September_2023.pdf
(FRENCH V.31.05.2019): https://pdfhost.io/v/0OlQ6A0s2_Guide_pratique_electrolysepdf.pdf
Evaluation
Dear buyer, please, don’t forget to leave me a positive 5 stars rating if you are satisfied.
It is very important for me, I’m honest and try to provide the best quality at lower price.
I do my best to help everyone, I can help you for the use if you have questions.
(But first, please, read the manual and watch the video before questions 😉
Weight | 0,25 kg |
---|---|
Dimensions | 28 × 20 × 2 cm |
Model | 100×50 Anode plate + cathode, 200×60 mesh anode + cathode, Lid complete with 200×60 electrodes |
